Cog Component model

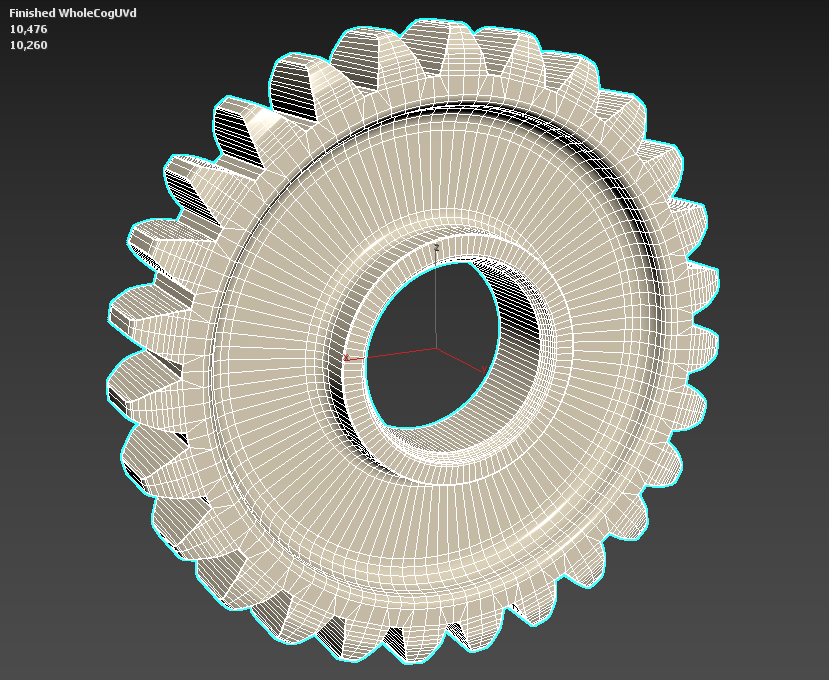

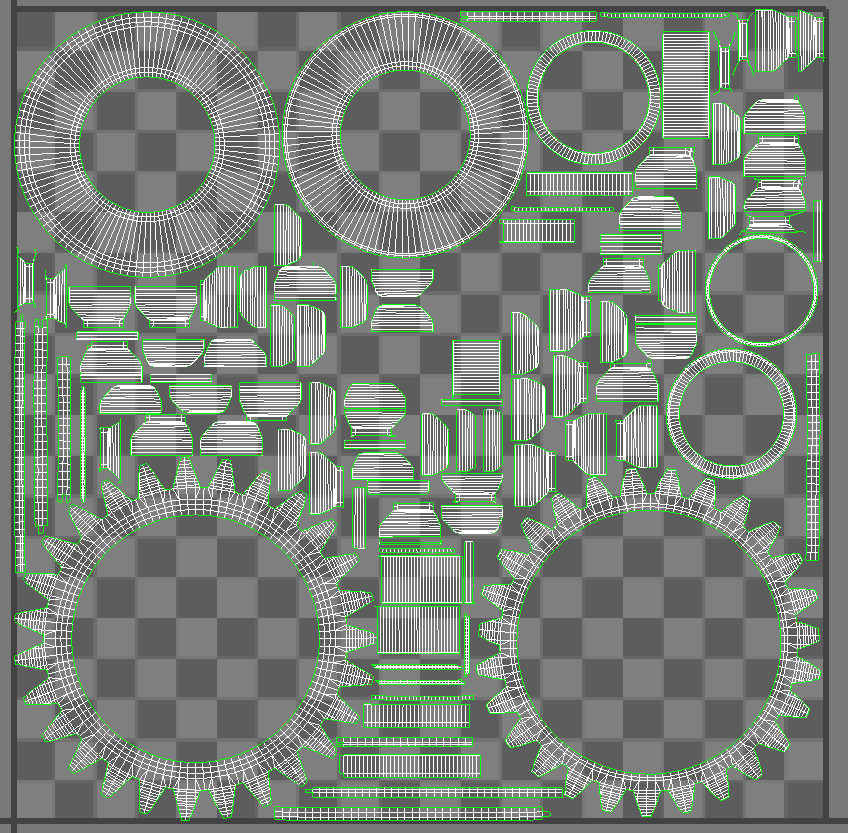

A model of a Cog which is UV mapped, recreated from CAD data from the real object in 3DS Max.

Main techniques used being Pro booleans, Extruding and lathe to create the model.
